Equipment specification

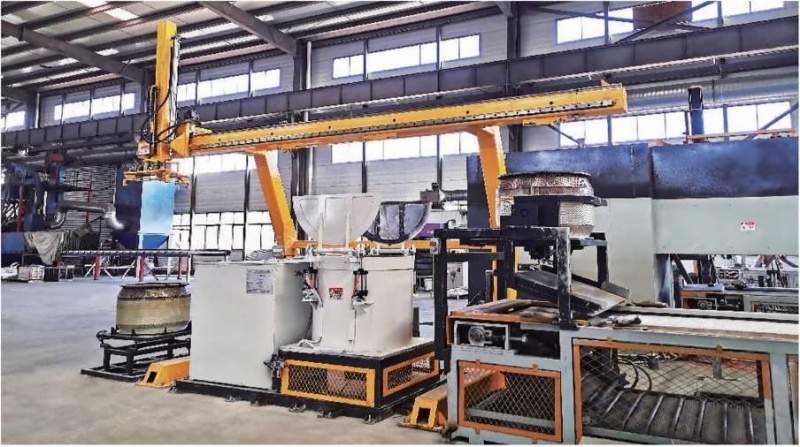

The automatic coating machine is mainly composed of the following parts: soaking tank (SUS304)】 throwing drying mechanism (without inclination), tank body, tank cover, coating liquid mixing device, coating liquid recovery device, coating liquid temperature regulating system, workpiece rotary conveying system (lifting with oil cylinder), coating mixing control system and material basket, trolley turning feeding device, telescopic mesh belt conveyor, weighing system The manipulator basket carrying system and basket turning and cutting device.



Primary
> Workpiece range: standard parts, stamping parts, customer specified parts.
> Beat time: 2 minutes 30 seconds / basket (adjustable).
> Loading capacity: 250 kg / basket.
> Capacity (theoretical): 6 tons I hour (one coating and one drying).
> Product quality requirements: two coating and two baking or three coating and three baking Dacrometwith coating thickness of6-10um.



Technical parameters/model number
Basket diameter	6 800mm
Workpiece basket capacity	250KG
Centrifuge speed	100-350r/min
Loading capacity of coating liquid	300-340L
Chiller power	3HP
Total power	20KW
