Loading→Leveling→Drying(Pre-heating)→Curing→Cooling and unloading
2. Main structure:

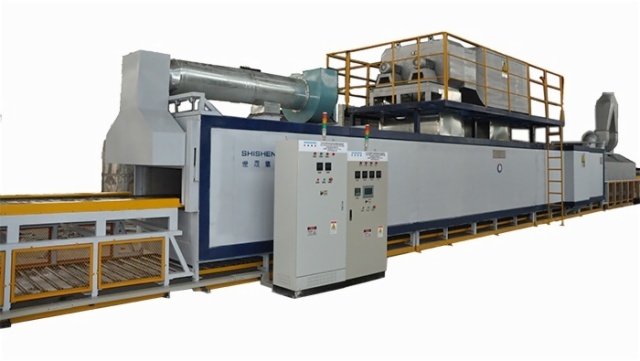

Mainly structured of Loading and unloading sections, HL Cooling System, Convey Unit, Body, Hot Blast Air Generating and Circulating Systems, Electric Control System and so on. High-automaticly controlled with the speed of mesh-blet regulated, it can fully satisfy all curing processes.
3.Technical data: Length :16m(Can be made according to demand) Band width: 1.2m(Can be made according to demand) Max curing temperature: 360℃ Temperature uniformity control: ±5℃ Max load capacity/mesh-belt:200kg/m² Avg.gas consumption:14.5m³/h Belt convey speed: 0.2~0.8m/min
Equipment
Standard equipments：
Control system Burner High temperature fan Transmission motor
