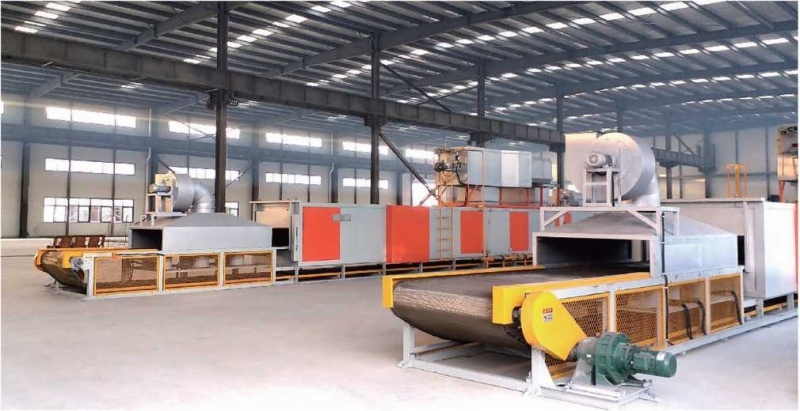

SL1600 mesh belt type curing furnace is the Shi Sheng global R&D team with the best and top surface anti-corrosion treatment research institutions jointly developed by the R&D staff, innovation introduced a revolutionary new hot air circulation system, make up and down inside the furnace air supply at the same time, the perfect temperature curve, will improve the users performance, make the equipment more environmental protection and energy saving.



Technical parameters/model number
Curing oven		SL800	SL1200	SL1600	SL2400
Length of the furnace body	m	8	12	16	24
Adjusting range	r	100-360	100-380	100-400	100-400
Mesh belt width	mm	1000(5J^W {customized)	1200(q[S®J) (customized)	1200(qJS8)) (customized)	(customized)
Maximum workpiece height	mm	300	400	500	600
Temperature control precision	r	±2	± 2	土 2	±2
Burner efficiency	Kca/H	200000	300000	400000	600000
Average air consumption	m9/H	10(bigfire)	16mW {biglire)	24 (bigfire)	40msM Xbig fire)
Burner brand		Sho piional	8)Shoei(optional)	ORM)Shoei(optional)	ShoeiQMional)
Energy type		Gas (Electric)	Gas (Electric)	Gas (Electric)	Gas (Electric)
