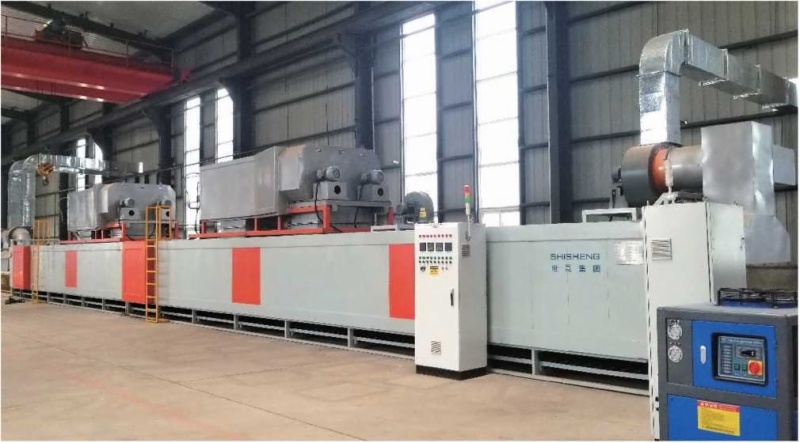

Gas mesh belt curing furnace is mainly composed of feeding section, sintering furnace, discharging section, strong cooling system, hot air generator, network belt drive mechanism and electrical control system.



Technical parameters/model number
Oven outside dimension	46000*2250*3500mm(fegM)(Length*Width*Height)
Rated maximum temperature	400t
Temperature risetime(upto 320 degrees)	50 min
Running speed	v=0.2-1m/min,Stepless adjustable
Mesh belt load bearing	200kg/m2
Mesh belt width	1200mm
Effective pass height	400 mm
Drive power	5.5kw
